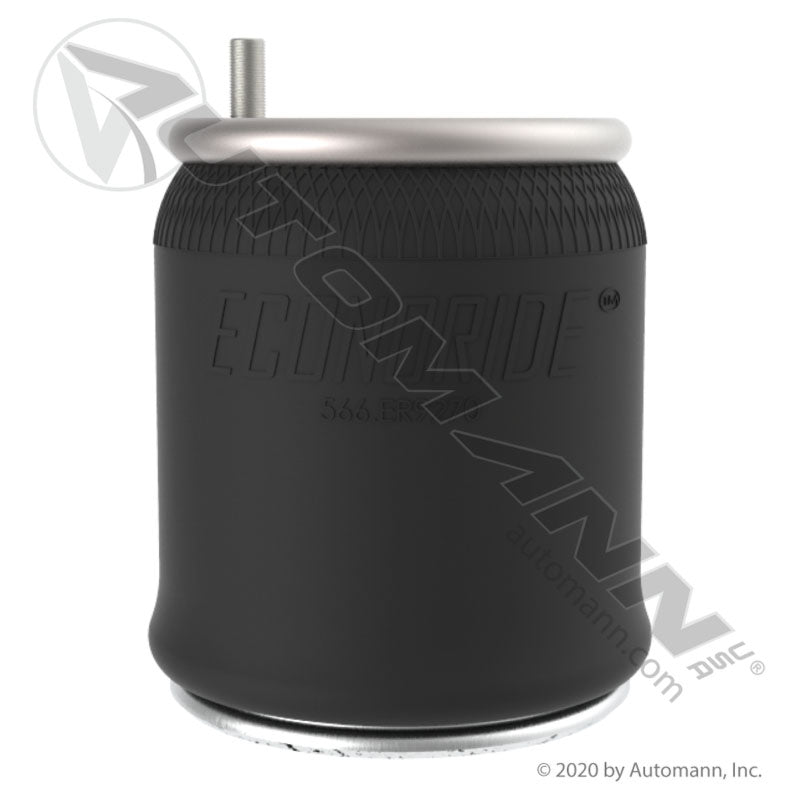

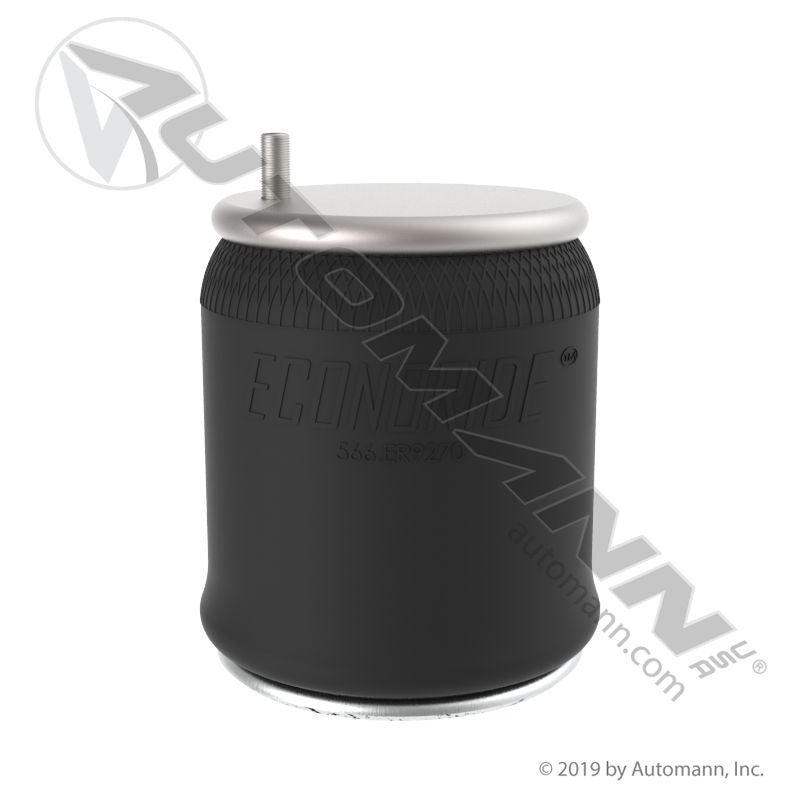

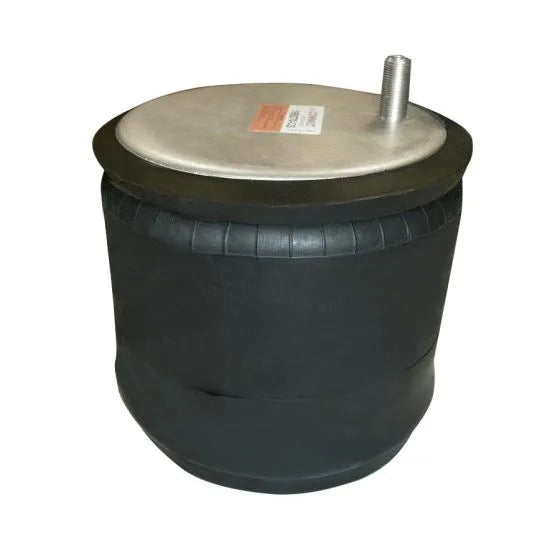

566.ER9270 - Econoride Air Spring Rolling Lobe
566.ER9270 - Econoride Air Spring Rolling Lobe
Couldn't load pickup availability
Product Overview
Econoride’s aftermarket air spring offers a quality product that is economical with impressive performance. Engineered to meet OEM specification while minimizing vibration and load fluctuations. The Air Spring is guaranteed to ensure a smooth ride for driver and cargo alike. Enjoy a quiet and level ride experience with these long lasting Air Springs. Guaranteed to Keeping Trucks Moving
Specific Features & Benefits
- Cost-effective Air Springs without compromising quality
- Plastic Base allows for optimized weight and cost savings
- Value added, profit enhancing and price competitive
- Features OEM dimensioning for hassle-free assembly
- Resistant to oil, lubricants, and averse weather conditions
- Manufactured to be environmentally friendly and longer lasting at an optimal weight
| Attribute | Value |
|---|---|
| Type | Rolling Lobe |
| Automann Bellows# | 1DK23I |
| Firestone Bellows# | 1T15VM-4.0, 1T15VP-4.0 |
| Goodyear Bellows# | 566-26-3-053, 566-26-3-036 |
| Contitech Bellows# | 9 10-13.5 |
| Triangle Bellows# | 6385 |
| Load (Lbs) @80 PSI | 6300 |
| Load (Lbs) @100 PSI | 7900 |
| Natural Freq. (CPM) | 89 |
| Design Height (In) | 9 |
| Bottom Plate Type | Steel |
| Top Plate Hole/Stud Qty | 1 |

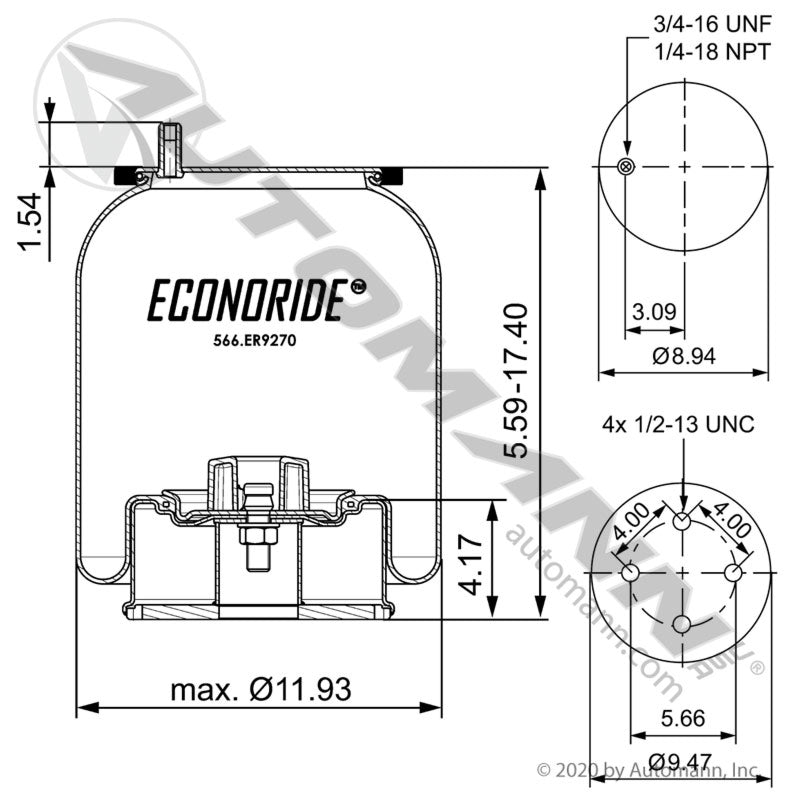

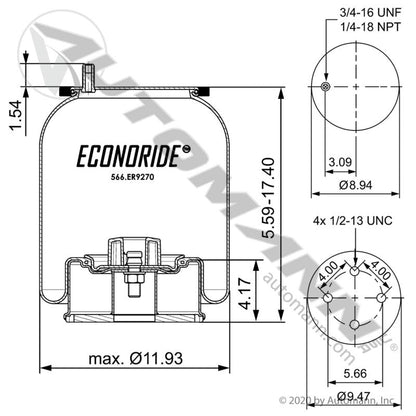

| Top Plate Dia. (A) | 9.00 |
| Top Plate C to C Dia. (B) | N/A |
| Bottom Plate Hole/Stud Qty | 4 |
| Bottom Plate Dia. (C) | 9.47 |
| Bottom Plate C to C Dia. (D) | 5.66" |
| Bottom Part # | BS09758 |
| Bumper | Yes |
| Bracket | N/A |
| Min. Height | 5.4 |
| Max. Height | 16.8 |
| Max. Dia. | 12.6 |
Alternate #1R13-119
Contitech OEM Part Number: 161034
Contitech OEM Part Number: 64287
Contitech OEM Part Number: 9 10-13.5 S 433
Firestone OEM Part Number: 9270
Firestone OEM Part Number: W013589270
Firestone OEM Part Number: W01-358-9270
Goodyear OEM Part Number: 1R13119
Goodyear OEM Part Number: 1R13-119
