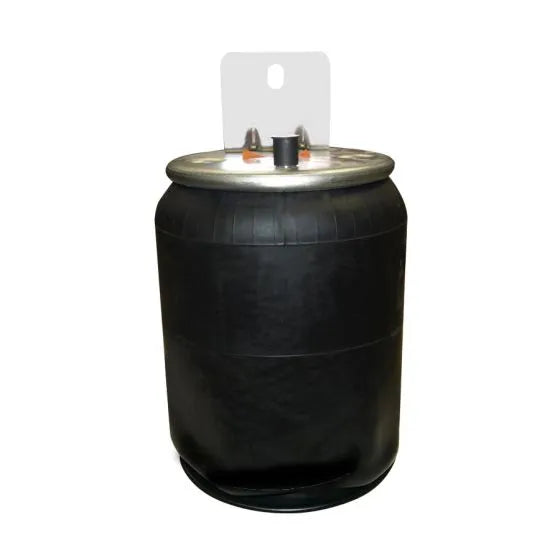

566.ER9875 - Econoride Air Spring Rolling Lobe
566.ER9875 - Econoride Air Spring Rolling Lobe
Regular price
$103.81
Regular price
Sale price
$103.81
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Product Overview
Econoride’s aftermarket air spring offers a quality product that is economical with impressive performance. Engineered to meet OEM specification while minimizing vibration and load fluctuations. The Air Spring is guaranteed to ensure a smooth ride for driver and cargo alike. Enjoy a quiet and level ride experience with these long lasting Air Springs. Guaranteed to Keeping Trucks Moving
Specific Features & Benefits
- Cost-effective Air Springs without compromising quality
- Plastic Base allows for optimized weight and cost savings
- Value added, profit enhancing and price competitive
- Features OEM dimensioning and up assembly mounting bracket for hassle-free installation
- Resistant to oil, lubricants, and averse weather conditions
- Manufactured to be environmentally friendly and longer lasting at an optimal weight

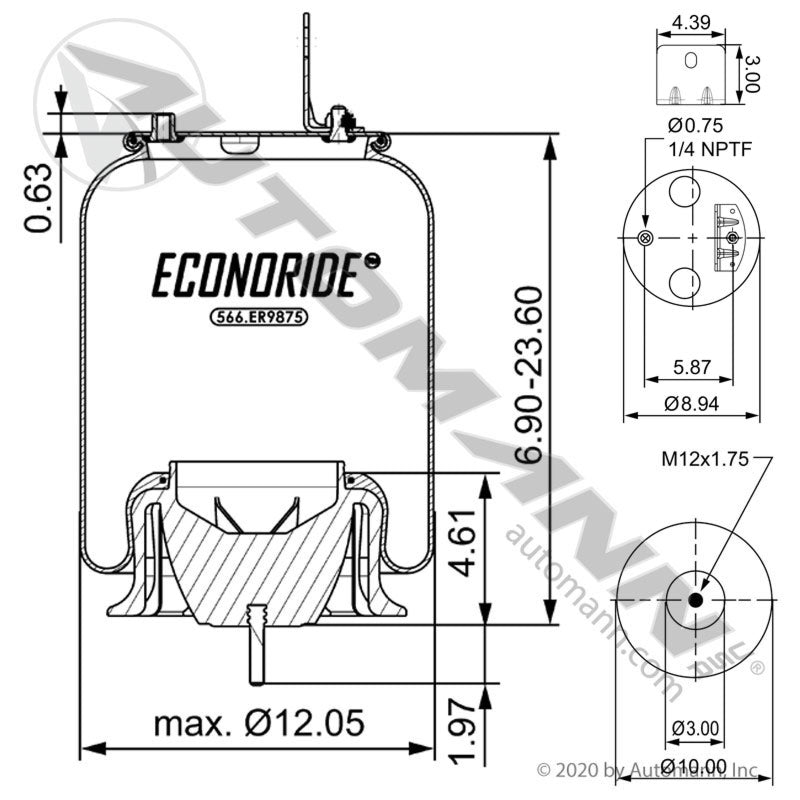

| Attribute | Value |
|---|---|
| Type | Rolling Lobe |
| Brand | Econoride |
| Automann Bellows# | 1DF23I |
| Firestone Bellows# | 1T15XR-9 |
| Goodyear Bellows# | 566-24-3-165 |
| Contitech Bellows# | 9 10S-18 |
| Bottom Plate Type | Plastic |
| Top Plate Hole/Stud Qty | 2 |
| Top Plate Dia. (A) | 8.94 |
| Top Plate C to C Dia. (B) | 5.87 |
| Bottom Plate Hole/Stud Qty | 1 |
| Bottom Plate Dia. (C) | 10.00 |
| Bottom Plate C to C Dia. (D) | N/A |
| Bumper | No |
| Bracket | AB9875P |
| Max. Dia. | 12.05 |
Alternative # 1R12-432
Goodyear OEM Part Number: 1R12-432
Goodyear OEM Part Number: 1R12432
Firestone OEM Part Number: 9875
Firestone OEM Part Number: W01-358-9875
Firestone OEM Part Number: W013589875
