566.ER9781 - Econoride Air Spring Rolling Lobe

566.ER9781 - Econoride Air Spring Rolling Lobe

$92.40
$92.40
Sale Sold out
Shipping calculated at checkout.

Product Overview

Econoride’s aftermarket air spring offers a quality product that is economical with impressive performance. Engineered to meet OEM specification while minimizing vibration and load fluctuations. The Air Spring is guaranteed to ensure a smooth ride for driver and cargo alike. Enjoy a quiet and level ride experience with these long lasting Air Springs. Guaranteed to Keeping Trucks Moving

Specific Features & Benefits

  • Cost-effective Air Springs without compromising quality
  • Aluminum Base allows for increased strength and durability
  • Value added, profit enhancing and price competitive
  • Features OEM dimensioning for hassle-free assembly
  • Resistant to oil, lubricants, and averse weather conditions
  • Manufactured to be environmentally friendly and longer lasting at an optimal weight
Attribute Value
Type Rolling Lobe
Automann Bellows# 1DF23
Firestone Bellows# 1T15ZR-6
Goodyear Bellows# 566-24-3-275, 566-24-3-108
Contitech Bellows# 9 10S-16
Triangle Bellows# 6363
Load (Lbs) @80 PSI 6100
Load (Lbs) @100 PSI 7700
Natural Freq. (CPM) 76
Design Height (In) 12.5
Bottom Plate Type Aluminum
Top Plate Hole/Stud Qty 2

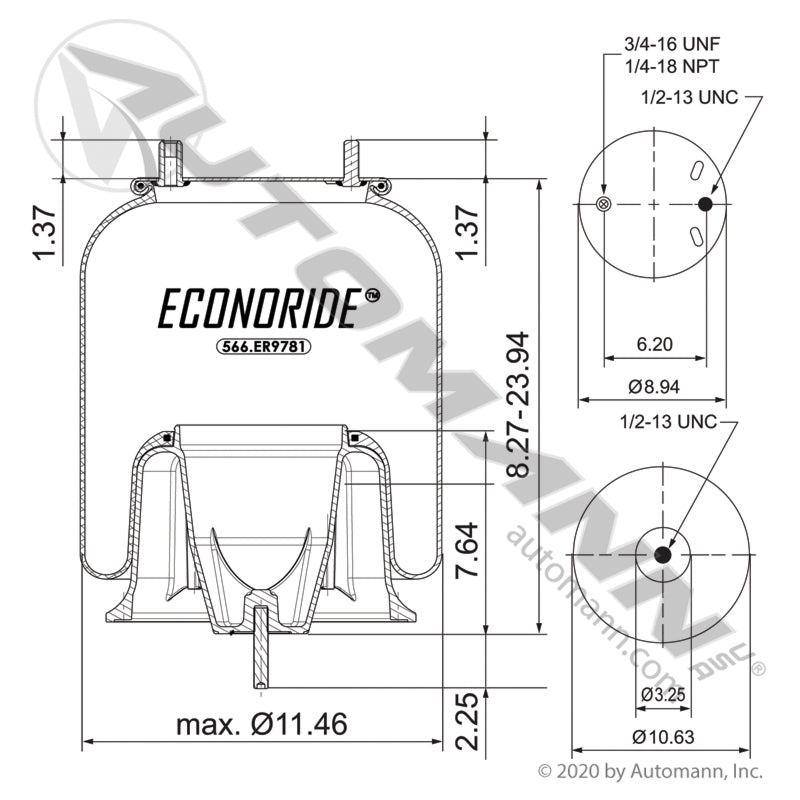

Top Plate Dia. (A) 9.00
Top Plate C to C Dia. (B) 6.20
Bottom Plate Hole/Stud Qty 1
Bottom Plate Dia. (C) 10.63
Bottom Plate C to C Dia. (D) N/A
Bottom Part # BS10947
Bumper No
Bracket N/A
Min. Height 8.6
Max. Height 23
Max. Dia. 12.6



Alternate # 1R12-603

Contitech OEM Part Number: 64266
Firestone OEM Part Number: 9781
Firestone OEM Part Number: W013589781
Firestone OEM Part Number: W01-358-9781
Firestone OEM Part Number: W013778536
Firestone OEM Part Number: W01-377-8536
Hendrickson OEM Part Number: 8536
