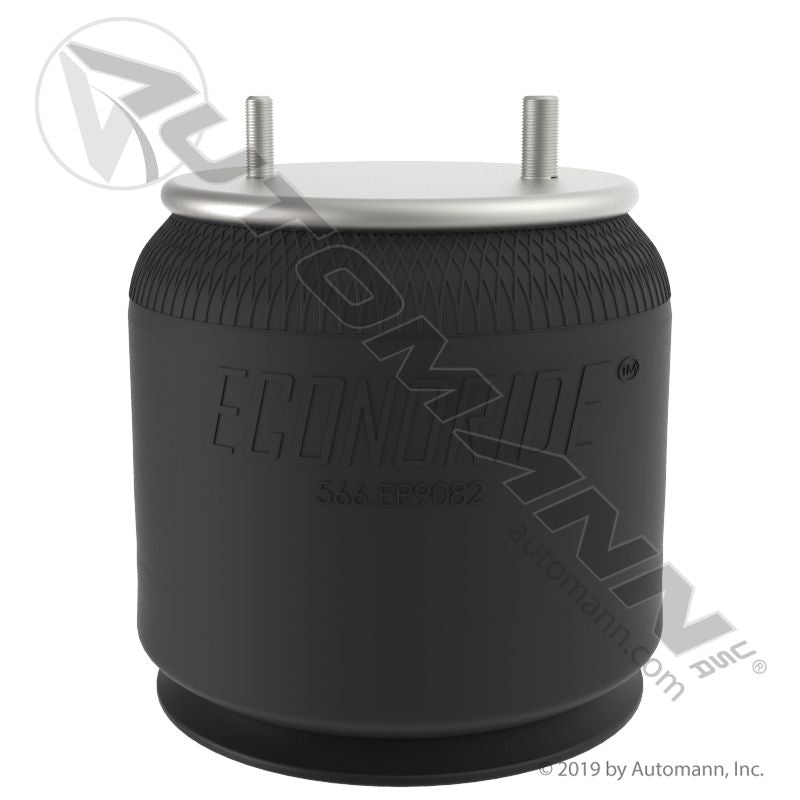

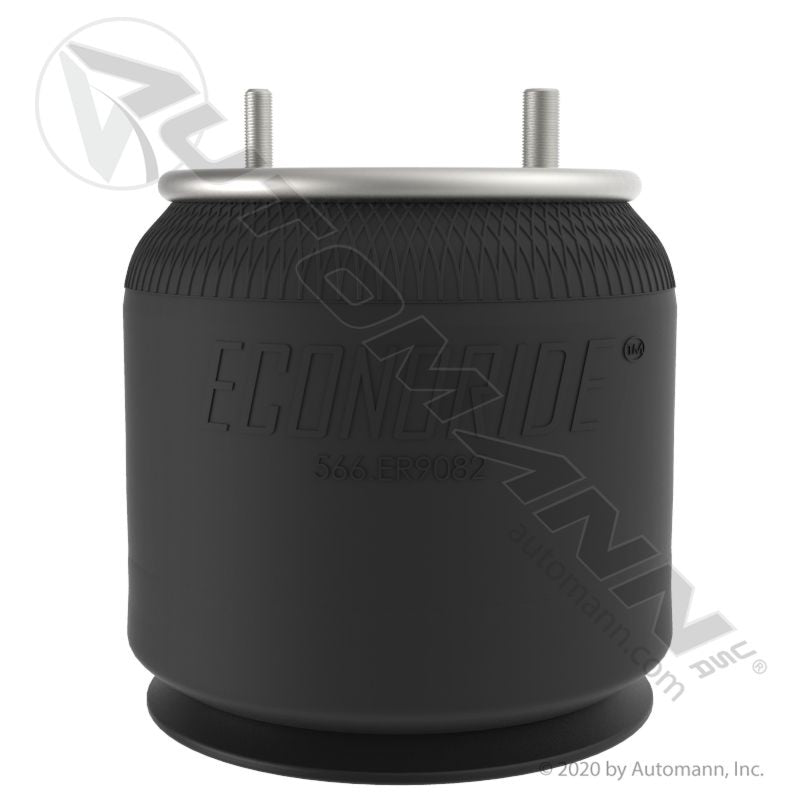

566.ER9082 - Econoride Air Spring Rolling Lobe

566.ER9082 - Econoride Air Spring Rolling Lobe

$96.53
$96.53
Sale Sold out
Shipping calculated at checkout.

Product Overview

Econoride’s aftermarket air spring offers a quality product that is economical with impressive performance. Engineered to meet OEM specification while minimizing vibration and load fluctuations. The Air Spring is guaranteed to ensure a smooth ride for driver and cargo alike. Enjoy a quiet and level ride experience with these long lasting Air Springs. Guaranteed to Keeping Trucks Moving

Specific Features & Benefits

  • Cost-effective Air Springs without compromising quality
  • Plastic Base allows for optimized weight and cost savings
  • Value added, profit enhancing and price competitive
  • Features OEM dimensioning for hassle-free assembly
  • Resistant to oil, lubricants, and averse weather conditions
  • Manufactured to be environmentally friendly and longer lasting at an optimal weight
Automann #
566.ER9082
Ref. #
9082, 1R12-092, 64269, AB1DK23K-9082
Brand
Econoride
Product Level
Fleet Value
Description
  • Econoride
  • Plastic Base
Applications
Hendrickson Trailer, Hutch, Kelderman, Kwik Loc, Reyco Granning, Ridewell, SAF Holland/Neway, Watson and Chalin
Unit Size
1
Weight
16.41 lbs
Pkg. Dims (in)
10.6 X 10.6 X 14.17
Attribute Value
Type Rolling Lobe
Automann Bellows# 1DK23K
Firestone Bellows# 1T15M-6
Goodyear Bellows# 566-24-3-038, 566-24-3-048
Contitech Bellows# 9 10-16
Triangle Bellows# 6363
Load (Lbs) @80 PSI 5500
Load (Lbs) @100 PSI 7000
Natural Freq. (CPM) 70

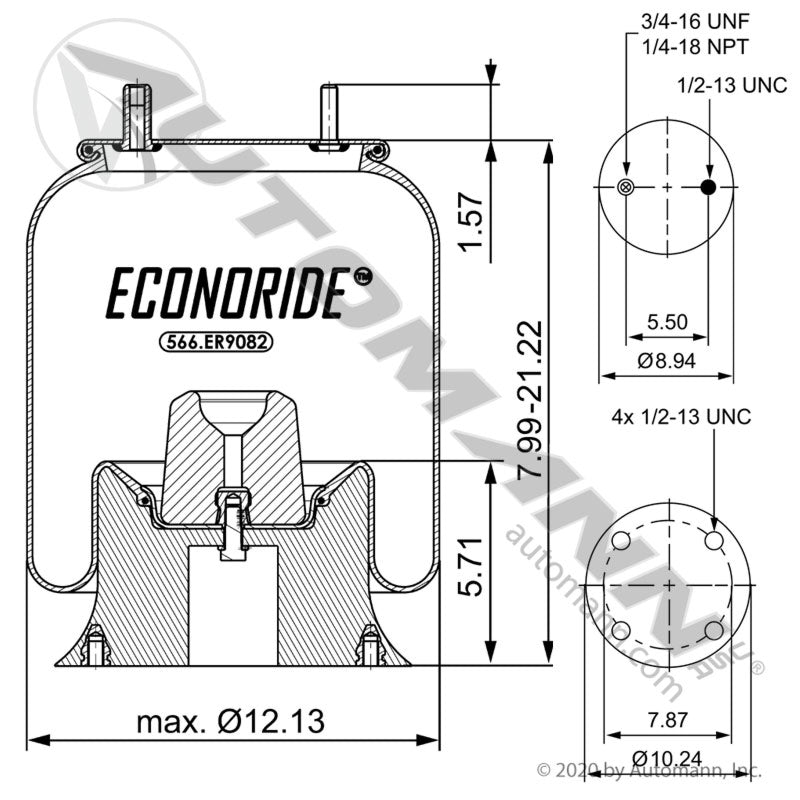

Design Height (In) 13.5
Bottom Plate Type Plastic
Top Plate Hole/Stud Qty 2
Top Plate Dia. (A) 9.00
Top Plate C to C Dia. (B) 5.50
Bottom Plate Hole/Stud Qty 4
Bottom Plate Dia. (C) 10.24
Bottom Plate C to C Dia. (D) 7.87"
Bottom Part # BS08133
Bumper Yes
Bracket N/A
Min. Height 7.9
Max. Height 21.5
Max. Dia. 12.6



Alternate # 1R12-092

Contitech OEM Part Number:   161015
Contitech OEM Part Number:   64269
Contitech OEM Part Number:   9 10-16 P 310
Contitech OEM Part Number:   910-16P310
Firestone OEM Part Number:   9082
Firestone OEM Part Number:   W013589082
Firestone OEM Part Number:   W01-358-9082
Goodyear OEM Part Number:   1R12092
Goodyear OEM Part Number:   1R12-092
Goodyear OEM Part Number:   1R12-093
Hendrickson OEM Part Number:   S11651
Hendrickson  OEM Part Number:  S12514007
Hendrickson OEM Part Number:   S2066
Hendrickson OEM Part Number:   S365147
Hutch  OEM Part Number:  H963001
IHC  OEM Part Number:  517559C9
Mack  OEM Part Number:  57QL310
Neway  OEM Part Number:  90557027
Neway OEM Part Number:   90557033
Reyco   OEM Part Number: 1288201
