566.ER6910 - Econoride Air Spring Double Convoluted
566.ER6910 - Econoride Air Spring Double Convoluted
Couldn't load pickup availability
Product Overview
Econoride’s aftermarket air spring offers a quality product that is economical with impressive performance. Engineered to meet OEM specification while minimizing vibration and load fluctuations. The Air Spring is guaranteed to ensure a smooth ride for driver and cargo alike. Enjoy a quiet and level ride experience with these long lasting Air Springs. Guaranteed to Keeping Trucks Moving
Specific Features & Benefits
- Cost-effective Air Springs without compromising quality
- The double convoluted design of the air spring is ideal for handling load fluctuations
- Value added, profit enhancing and price competitive
- Features OEM dimensioning for hassle-free assembly
- Resistant to oil, lubricants, and averse weather conditions
- Manufactured to be environmentally friendly and longer lasting at an optimal weight
| Attribute | Value |
|---|---|
| Type | Double Convoluted |
| Brand | Automann Phoenix |
| Automann Bellows# | SP2B12R |
| Firestone Bellows# | 20 |
| Goodyear Bellows# | 578-92-3-202 |
| Contitech Bellows# | FD 200-19 |
| Triangle Bellows# | 6325 |
| Load (Lbs) @80 PSI | 2560 |
| Load (Lbs) @100 PSI | 3200 |
| Natural Freq. (CPM) | 108 |

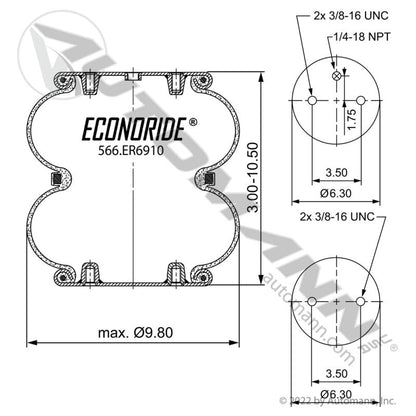

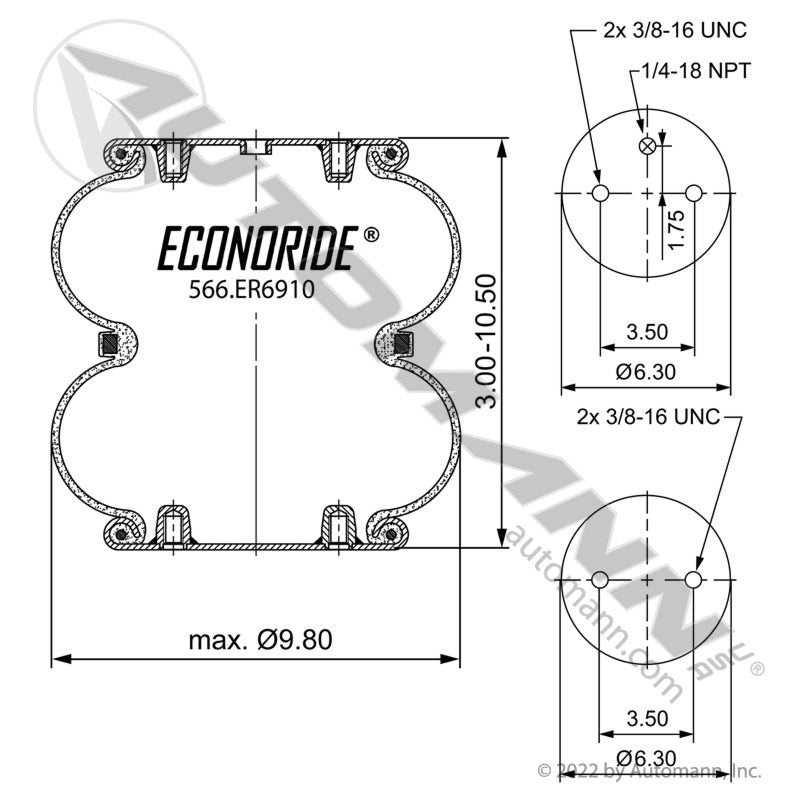

| Design Height (In) | 8.00 |
| Top Plate Hole/Stud Qty | 3 |
| Top Plate Dia. (A) | 6.31 |
| Top Plate C to C Dia. (B) | 3.50 |
| Bottom Plate Hole/Stud Qty | 2 |
| Bottom Plate Dia. (C) | 6.31 |
| Bottom Plate C to C Dia. (D) | 3.50" |
| Bumper | No |
| Min. Height | 3.00 |
| Max. Height | 10.50 |
| Max. Dia. | 9.80 |
Alternate # 2B9-200
Contitech OEM Part Number: 161008
Contitech OEM Part Number: 64267
Contitech OEM Part Number: FD 200-19 320
Firestone OEM Part Number: 6910.00
Firestone OEM Part Number: W01-358-6910
Firestone OEM Part Number: W013586910
Goodyear OEM Part Number: 2B9-200
Goodyear OEM Part Number: 2B9200
Hendrickson Truck OEM Part Number: 45843-003
Hendrickson Truck OEM Part Number: 45843-3
Hendrickson Truck OEM Part Number: 45843003
Hendrickson Truck OEM Part Number: 458433
Hendrickson OEM Part Number: B458433
Hendrickson OEM Part Number: B8768
Hendrickson Trailer OEM Part Number: S-8768
Hendrickson OEM Part Number: S458433
Hendrickson Trailer OEM Part Number: S8768
IHC OEM Part Number: 554783C1
Meritor OEM Part Number: FS6910
Neway OEM Part Number: 57006910
Ridewell OEM Part Number: 1003586910C
Torque OEM Part Number: TR6910
Volvo/White OEM Part Number: 3918343
Watson&Chalin OEM Part Number: AS0001
