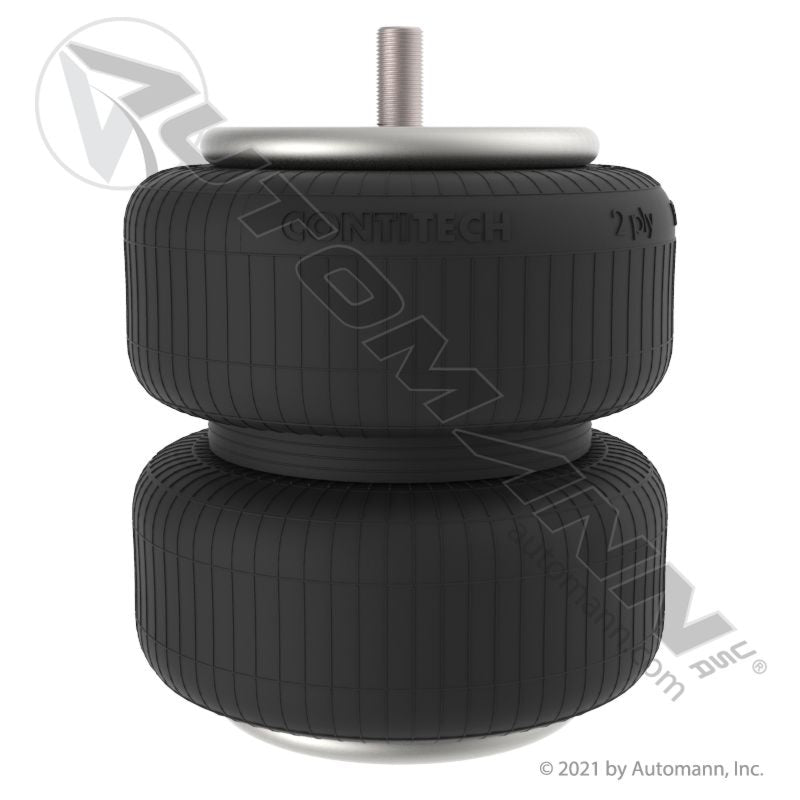

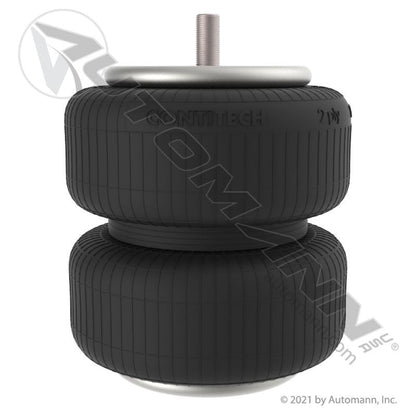

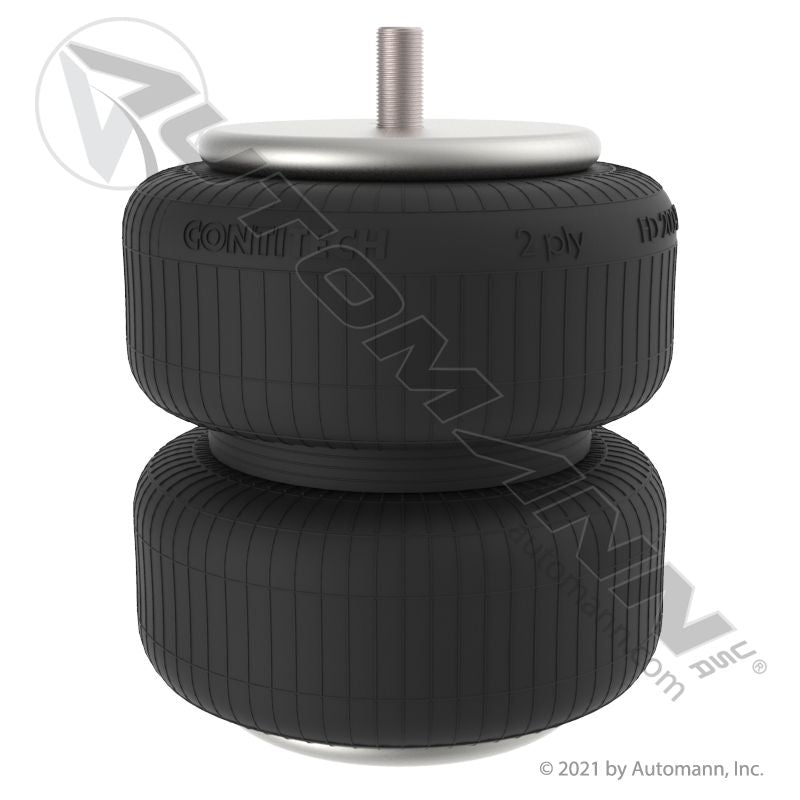

566.CT64665 - Continental Air Spring Double Convoluted
566.CT64665 - Continental Air Spring Double Convoluted
Product Overview
Continental’s premier double convoluted air spring boasts the ability to maintain ride height and to maximize service life. The two bellow design is engineered to meet OEM specification while minimizing vibration and load fluctuations. The Air Spring is guaranteed to ensure a smooth ride for driver and cargo alike. Enjoy a quiet and level ride experience with these long lasting Air Springs. Committed to Keeping Trucks Moving
Specific Features & Benefits
- High quality raw material and manufacturer expertise to guarantee long-lasting performance
- The double convoluted design of the air spring is ideal for handling load fluctuations
- Features OEM dimensioning for hassle-free assembly
- Resistant to oil, lubricants, and averse weather conditions
- Manufactured to be environmentally friendly and longer lasting at an optimal weight
Attribute | Value |
---|---|
Type | Double Convoluted |
Brand | Continental |
Automann Bellows# | SP2B12RB |
Firestone Bellows# | 20-1 |
Goodyear Bellows# | 578-92-3-211 |
Contitech Bellows# | FD 200-22 |
Triangle Bellows# | 6332 |
Load (Lbs) @80 PSI | 2900 |
Load (Lbs) @100 PSI | 3600 |
Natural Freq. (CPM) | 103 |

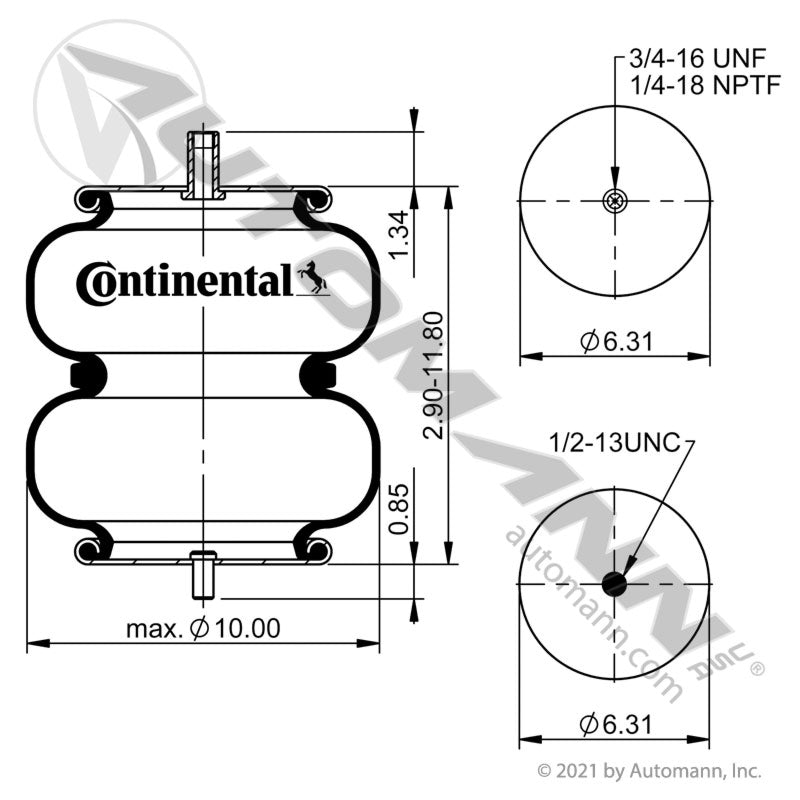

Design Height (In) | 8 |
Top Plate Hole/Stud Qty | 1 |
Top Plate Dia. (A) | 6.310 |
Top Plate C to C Dia. (B) | N/A |
Bottom Plate Hole/Stud Qty | 1 |
Bottom Plate Dia. (C) | 6.310 |
Bottom Plate C to C Dia. (D) | N/A |
Bottom Plate Alignment | Parallel |
Bumper | No |
Min. Height | 2.900 |
Max. Height | 11.800 |
Max. Dia. | 10.000 |

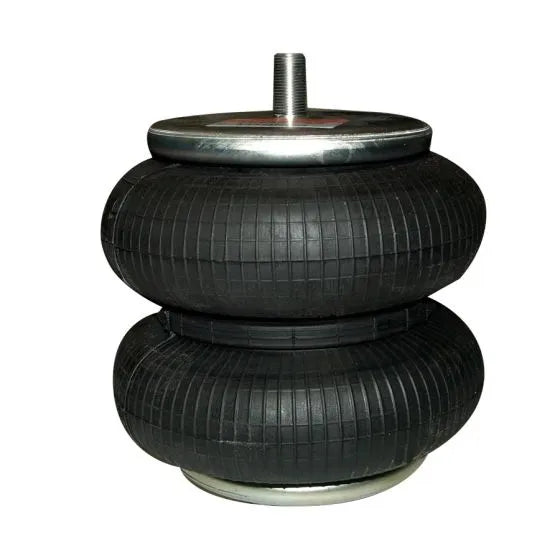

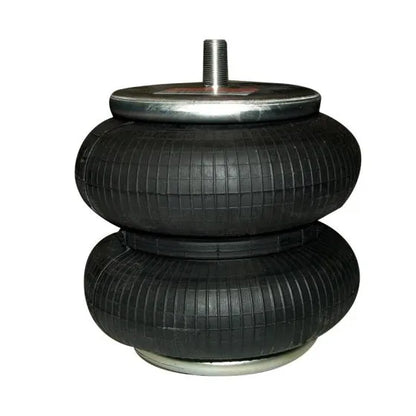

Alternate # 2B9-229
Contitech OEM Part Number: 64665
Contitech OEM Part Number: 70591
Contitech OEM Part Number: FD200-22706
Firestone OEM Part Number: 6886
Firestone OEM Part Number: W013586886
Firestone OEM Part Number: W01-358-6886
Goodyear OEM Part Number: 2B9229
Goodyear OEM Part Number: 2B9-229
Reyco OEM Part Number: 70178401
Reyco OEM Part Number: 701784-01
Watson&Chalin OEM Part Number: AS00581F
Watson&Chalin OEM Part Number: AS0058-1F
Watson&Chalin OEM Part Number: AS-0058-1F
