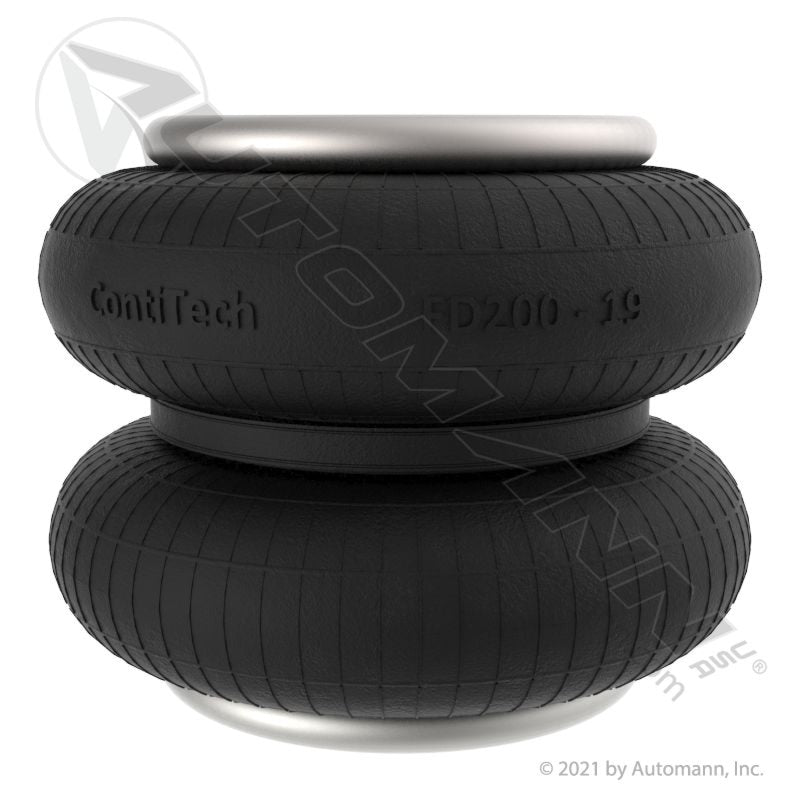

566.CT64509 - Continental Air Spring Double Convoluted
566.CT64509 - Continental Air Spring Double Convoluted
Couldn't load pickup availability
Product Overview
Continental’s premier double convoluted air spring boasts the ability to maintain ride height and to maximize service life. The two bellow design is engineered to meet OEM specification while minimizing vibration and load fluctuations. The Air Spring is guaranteed to ensure a smooth ride for driver and cargo alike. Enjoy a quiet and level ride experience with these long lasting Air Springs. Committed to Keeping Trucks Moving
Specific Features & Benefits
- High quality raw material and manufacturer expertise to guarantee long-lasting performance
- The double convoluted design of the air spring is ideal for handling load fluctuations
- Features OEM dimensioning for hassle-free assembly
- Resistant to oil, lubricants, and averse weather conditions
- Manufactured to be environmentally friendly and longer lasting at an optimal weight
| Attribute | Value |
|---|---|
| Type | Double Convoluted |
| Brand | Continental |
| Automann Bellows# | SP2B12R |
| Firestone Bellows# | 20 |
| Goodyear Bellows# | 578-92-3-211 |
| Contitech Bellows# | FD 200-19 |
| Triangle Bellows# | 6325 |
| Load (Lbs) @80 PSI | 2560 |
| Load (Lbs) @100 PSI | 3200 |
| Natural Freq. (CPM) | 108 |
| Design Height (In) | 8 |
| Top Plate Hole/Stud Qty | 3 |
| Top Plate Dia. (A) | 6.31 |
| Top Plate C to C Dia. (B) | 3.50 |
| Bottom Plate Hole/Stud Qty | 2 |
| Bottom Plate Dia. (C) | 6.31 |
| Bottom Plate C to C Dia. (D) | 3.500 |
| Bumper | Yes |
| Min. Height | 3.70 |
| Max. Height | 10.50 |
| Max. Dia. | 9.80 |

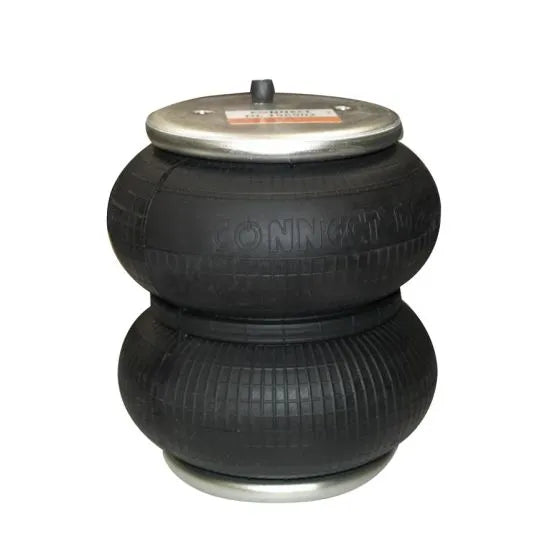

Alternate # 2B9-201
Contitech OEM Part Number: 64509
Contitech OEM Part Number: FD 200-19 310
Contitech OEM Part Number: FD200-19310
Firestone OEM Part Number: W013586902
Firestone OEM Part Number: W01-358-6902
Goodyear OEM Part Number: 2B9201
Goodyear OEM Part Number: 2B9-201
Goodyear OEM Part Number: 2B9239
Goodyear OEM Part Number: 2B9-239
Granning OEM Part Number: 4848
Hendrickson OEM Part Number: S2630
Hendrickson OEM Part Number: S-2630
IHC OEM Part Number: 554784C1
Loadguard OEM Part Number: SC2010
Monroe OEM Part Number: 6902
Neway OEM Part Number: 57006902
Neway OEM Part Number: G2296902500
Ridewell OEM Part Number: 1003586902C
Taurus OEM Part Number: AS2186902
Watson&Chalin OEM Part Number: AS0002
Watson&Chalin OEM Part Number: AS-0002
