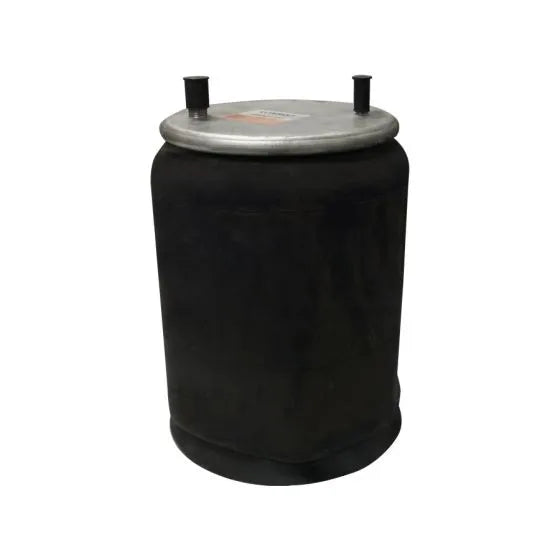

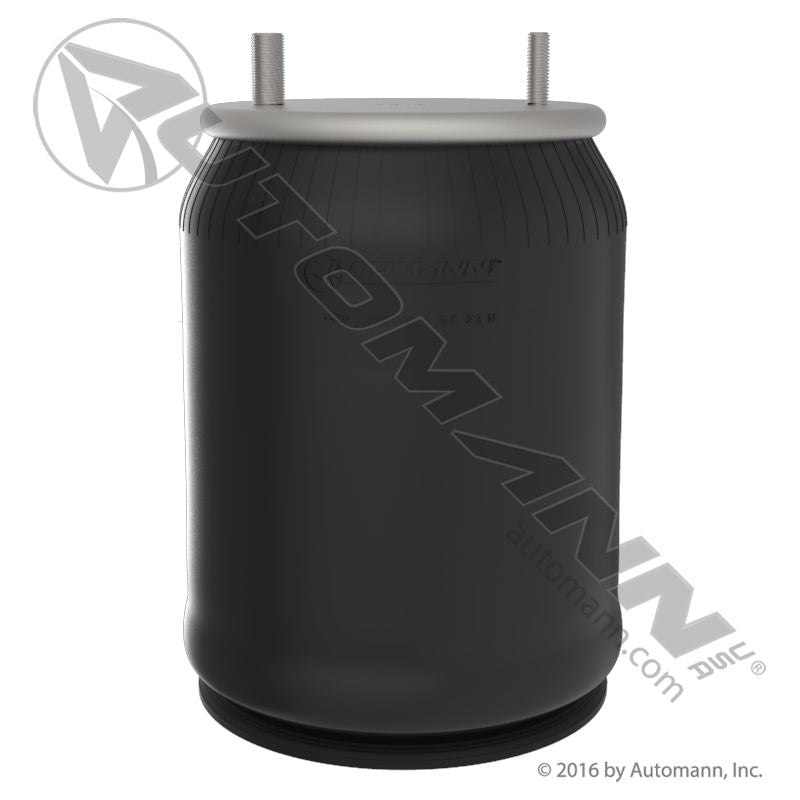

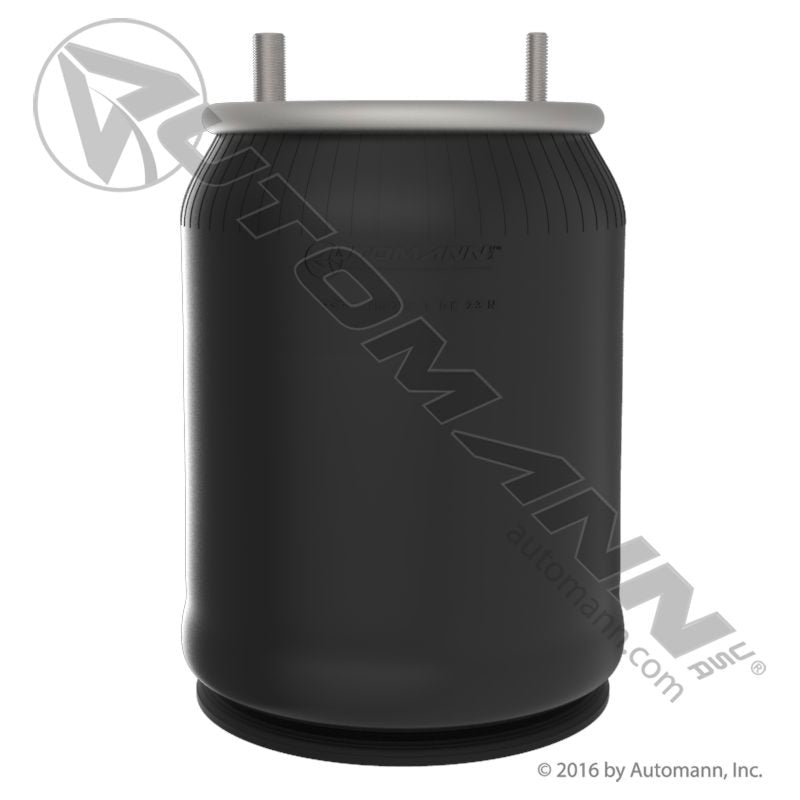

AB1DK23N-9367 - Air Spring Rolling Lobe
AB1DK23N-9367 - Air Spring Rolling Lobe
Couldn't load pickup availability
-
Product Overview
Automann’s premier air spring boasts the ability to maintain ride height. Engineered to meet OEM specification while minimizing vibration and load fluctuations. The Air Spring is guaranteed to ensure a smooth ride for driver and cargo alike. Enjoy a quiet and level ride experience with these long lasting Air Springs. Committed to Keeping Trucks Moving
Specific Features & Benefits
- Quality raw material and manufacturer expertise to guarantee performance
- Plastic Base allows for optimized weight and cost savings
- Features OEM dimensioning for hassle-free assembly
- Resistant to oil, lubricants, and averse weather conditions
- Manufactured to be environmentally friendly and longer lasting
- Automann #
- AB1DK23N-9367
- Ref. #
- 9367, 1R12-256, 64384, AS0104, AS0137
- Brand
- Automann Phoenix
- Product Level
- OE Aftermarket
- Description
-
- Plastic Base Can Use AB1DK23N-9321 and Spin Base 45 Degree
- Applications
- Hendrickson Aux, Hendrickson Trailer
- Unit Size
- 1
- Weight
- 18.51 lbs
- Pkg. Dims (in)
- 18 X 12 X 12
| Attribute | Value |
|---|---|
| Type | Rolling Lobe |
| Brand | Automann Phoenix |
| Automann Bellows# | 1DK23N |
| Firestone Bellows# | 1T15M-11 |
| Goodyear Bellows# | 566-24-3-090 |
| Contitech Bellows# | 9 10-21 |
| Triangle Bellows# | 6373 |
| Load (Lbs) @80 PSI | 5600 |
| Load (Lbs) @100 PSI | 7100 |
| Natural Freq. (CPM) | 55 |

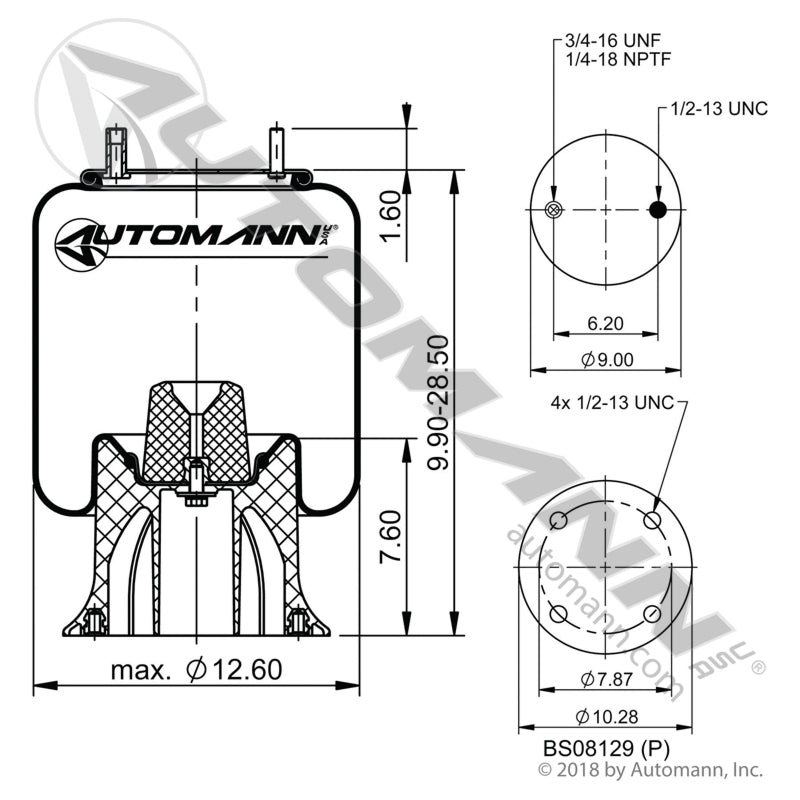

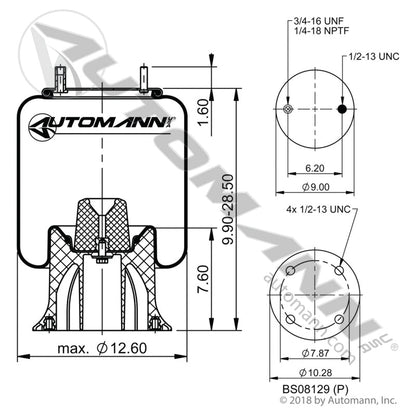

| Design Height (In) | 18.00 |
| Bottom Plate Type | Plastic |
| Top Plate Hole/Stud Qty | 2 |
| Top Plate Dia. (A) | 9.00 |
| Top Plate C to C Dia. (B) | 6.20 |
| Bottom Plate Hole/Stud Qty | 4 |
| Bottom Plate Dia. (C) | 10.28 |
| Bottom Plate C to C Dia. (D) | 7.87" |
| Bottom Part # | BS08129 |
| Bumper | Yes |
| Bracket | N/A |
| Min. Height | 9.90 |
| Max. Height | 28.50 |
| Max. Dia. | 12.60 |
Alternate # 1R12-256
Contitech OEM Part Number: 64384
Contitech OEM Part Number: 910-21P505
Firestone OEM Part Number: 9367
Firestone OEM Part Number: W013589367
Firestone OEM Part Number: W01-358-9367
Goodyear OEM Part Number: 1R12256
Goodyear OEM Part Number: 1R12-256
Hendrickson Aux OEM Part Number: R003319
Hendrickson Aux OEM Part Number: R-003319
Hendrickson OEM Part Number: 003319
Hendrickson OEM Part Number: 3319
Hendrickson OEM Part Number: B14249
Hendrickson OEM Part Number: B-14249
Hendrickson OEM Part Number: B4375
Hendrickson OEM Part Number: B-4375
Hendrickson OEM Part Number: S14229
Load Guard OEM Part Number: SC2120
Volvo/White OEM Part Number: 3098606
Watson&Chalin OEM Part Number: AS0104
Watson&Chalin OEM Part Number: AS-0104
Watson&Chalin OEM Part Number: AS0137
Watson&Chalin OEM Part Number: AS-0137
