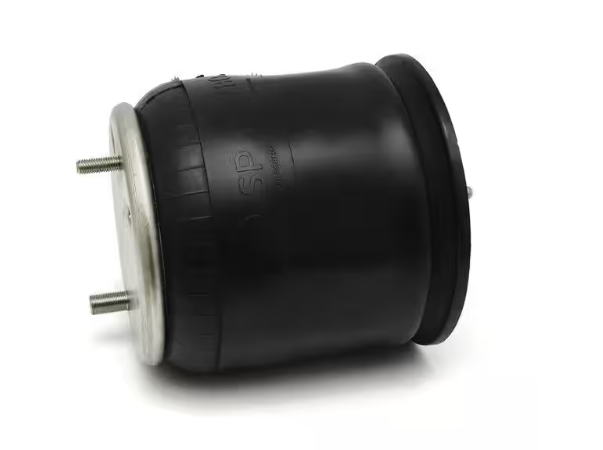

AB1DK23I-9069 - Air Spring Rolling Lobe

AB1DK23I-9069 - Air Spring Rolling Lobe

$104.09
$104.09
Sale Sold out
Shipping calculated at checkout.

Product Overview

Automann’s premier air spring boasts the ability to maintain ride height. Engineered to meet OEM specification while minimizing vibration and load fluctuations. The Air Spring is guaranteed to ensure a smooth ride for driver and cargo alike. Enjoy a quiet and level ride experience with these long lasting Air Springs. Committed to Keeping Trucks Moving

Specific Features & Benefits

  • Quality raw material and manufacturer expertise to guarantee performance
  • Plastic Base allows for optimized weight and cost savings
  • Features OEM dimensioning for hassle-free assembly
  • Resistant to oil, lubricants, and averse weather conditions
  • Manufactured to be environmentally friendly and longer lasting
Automann #
AB1DK23I-9069
Ref. #
9069, 1R12-069, 64274, 0302456, 0304759
Brand
Automann Phoenix
Product Level
OE Aftermarket
Description
Applications
Peterbilt
Unit Size
1
Weight
13.4 lbs
Pkg. Dims (in)
11.8 X 11.8 X 9.6
Attribute Value
Type Rolling Lobe
Brand Automann Phoenix
Automann Bellows# 1DK23I
Firestone Bellows# 1T15M-4
Goodyear Bellows# 566-24-3-038
Contitech Bellows# 9 10-13.5
Triangle Bellows# 6362
Load (Lbs) @80 PSI 5700
Load (Lbs) @100 PSI 7200
Natural Freq. (CPM) 76
Design Height (In) 11.00
Bottom Plate Type Plastic
Top Plate Hole/Stud Qty 3
Top Plate Dia. (A) 9.00
Top Plate C to C Dia. (B) 6.20
Bottom Plate Hole/Stud Qty 1
Bottom Plate Dia. (C) 9.53
Bottom Plate C to C Dia. (D) N/A
Bottom Part # BS08128
Bumper Yes
Bracket N/A
Min. Height 7.50
Max. Height 18.80
Max. Dia. 12.60



Alternate # 1R12-069

Contitech OEM Part Number:   161020
Contitech OEM Part Number:   64274
Contitech OEM Part Number:   9 10-14 P 312
Contitech OEM Part Number:   91014P312
Contitech OEM Part Number:   910-14P312
Firestone OEM Part Number:   9069
Firestone OEM Part Number:   W013589069
Firestone OEM Part Number:  W01-358-9069
Firestone OEM Part Number:   W017038808
Firestone OEM Part Number:   W01-703-8808
Firestone OEM Part Number:   W017038923
Firestone OEM Part Number:   W01-703-8923
Goodyear OEM Part Number:   1R12069
Goodyear OEM Part Number:   1R12-069
Goodyear OEM Part Number:   1R121069
Goodyear OEM Part Number:   1R12-1069
Goodyear OEM Part Number:   1R12-676
Hendrickson OEM Part Number:   S13031
Hendrickson OEM Part Number:   S-13031
IHC OEM Part Number:   554764C1
Loadguard OEM Part Number:   SC2034
Neway OEM Part Number:   G2299069200
Peterbilt OEM Part Number:   0301649
Peterbilt OEM Part Number:   03-01649
Peterbilt OEM Part Number:   0302038
Peterbilt OEM Part Number:   03-02038
Peterbilt OEM Part Number:   0302456
Peterbilt OEM Part Number:   03-02456
Peterbilt OEM Part Number:   0304759
Peterbilt OEM Part Number:   03-04759
Peterbilt OEM Part Number:   0306746
Peterbilt OEM Part Number:   03-06746
Peterbilt OEM Part Number:  0307112
Peterbilt OEM Part Number:   03-07112
Peterbilt OEM Part Number:   0310042
Peterbilt OEM Part Number:   03-10042
Peterbilt OEM Part Number:   2310042
Peterbilt OEM Part Number:   23-10042
Peterbilt OEM Part Number:   C816022
Peterbilt OEM Part Number:   C81-6022
Volvo/White OEM Part Number:   85101145
Watson&Chalin OEM Part Number:   AS0077
