Automann

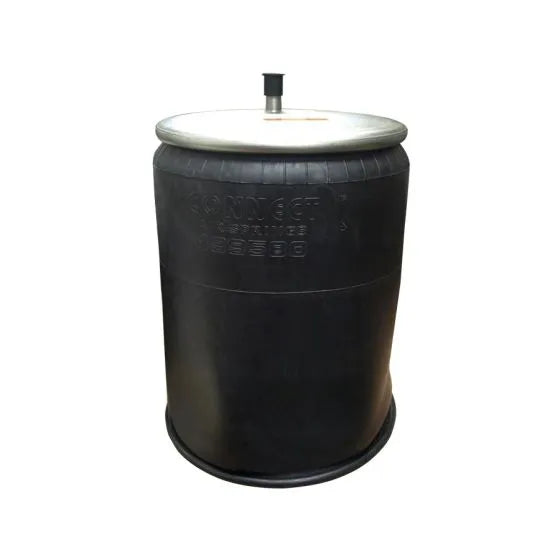

AB1DK25C-9580 - Air Spring Rolling Lobe

AB1DK25C-9580 - Air Spring Rolling Lobe

$110.98
$110.98
Sale Sold out
Shipping calculated at checkout.
Ref. #
9580, 1R13-118, 64394, S20127
Brand
Continental/ econoride/ contitech/ automann
Product Level
OE Aftermarket
Description
  • Plastic Base
Applications
Hendrickson Trailer
Unit Size
1
Weight
16.75 lbs
Pkg. Dims (in)
11.8 X 11.8 X 17.9
Applications Hendrickson Trailer
Type Rolling Lobe
Brand Automann Phoenix
Automann Bellows# 1DK25C
Firestone Bellows# 1T17CL-9.5
Goodyear Bellows# 566-26-3-068
Contitech Bellows# 10 10-21
Triangle Bellows# 6386
Load (Lbs) @80 PSI 6100
Load (Lbs) @100 PSI 7650
Natural Freq. (CPM) 59
Design Height (In) 15.00
Bottom Plate Type Plastic
Top Plate Hole/Stud Qty 1
Top Plate Dia. (A) 10.20
Top Plate C to C Dia. (B) N/A
Bottom Plate Hole/Stud Qty 4
Bottom Plate Dia. (C) 10.20
Bottom Plate C to C Dia. (D) 5.66"
Bottom Part # BS17377
Bumper Yes
Bracket N/A
Min. Height 7.20
Max. Height 24.40
Max. Dia. 13.70
