Automann

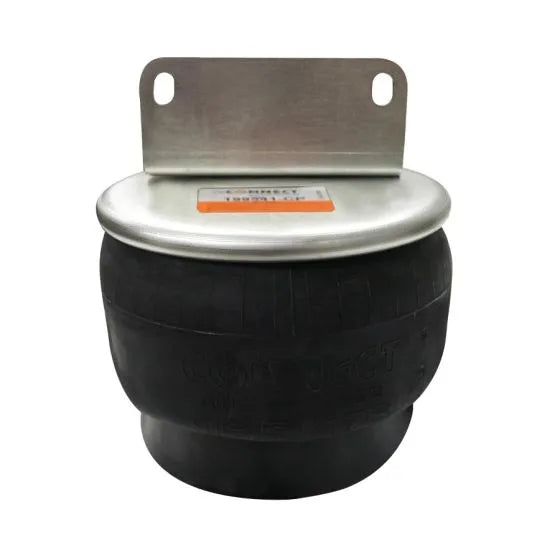

AB1DK20H-9541 - Air Spring Rolling Lobe

AB1DK20H-9541 - Air Spring Rolling Lobe

$97.98

$97.98

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

Ref. #: 9541, 68357, C811005

Brand: Continental/ econoride/ contitech/ automann

Product Level: OE Aftermarket

Description

Includes 1- SDN109 Nut and 1- AB9622P Bracket
Plastic Base

Applications: Kenworth

Unit Size: 1

Weight: 11.7 lbs

Pkg. Dims (in)

11.8 X 11.8 X 9.6

Applications	Kenworth
Type	Rolling Lobe
Brand	Automann Phoenix
Automann Bellows#	1DK20H
Contitech Bellows#	9 9-10
Triangle Bellows#	6415
Load (Lbs) @80 PSI	5100
Load (Lbs) @100 PSI	6400
Design Height (In)	7.00
Bottom Plate Type	Plastic
Top Plate Hole/Stud Qty	1
Top Plate Dia. (A)	9.00
Top Plate C to C Dia. (B)	N/A
Bottom Plate Hole/Stud Qty	1
Bottom Plate Dia. (C)	8.19
Bottom Plate C to C Dia. (D)	N/A
Bottom Part #	BS11561
Bumper	No
Bracket	AB9622P
Min. Height	3.90
Max. Dia.	11.40
