Automann

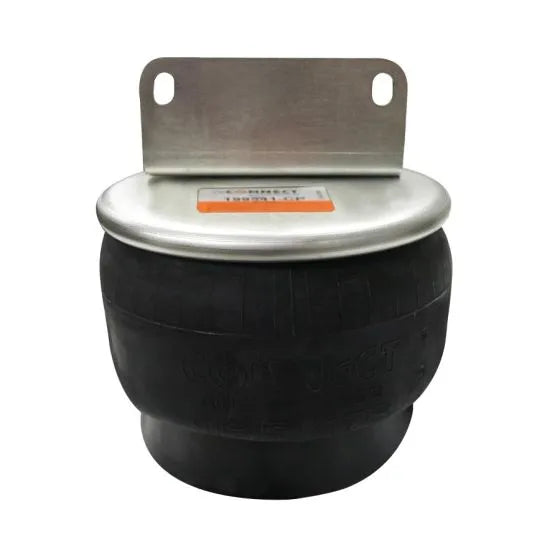

AB1DK20G-9547 - Air Spring Rolling Lobe

AB1DK20G-9547 - Air Spring Rolling Lobe

$114.98
$114.98
Sale Sold out
Shipping calculated at checkout.
Ref. #
9547, 1R11-268, 68358, C811004
Brand
Continental/ econoride/ contitech/ automann
Product Level
OE Aftermarket
Description
Applications
Kenworth
Unit Size
1
Weight
11.99 lbs
Pkg. Dims (in)
12 X 12 X 10
Applications Kenworth
Type Rolling Lobe
Brand Automann Phoenix
Automann Bellows# 1DK20G
Firestone Bellows# 1T15LA-(1), 1T15KW-(1)
Goodyear Bellows# 566-22-3-021
Contitech Bellows# 9 9-9
Triangle Bellows# 6397
Load (Lbs) @80 PSI 5100
Load (Lbs) @100 PSI 6400
Natural Freq. (CPM) 103
Design Height (In) 7.00
Bottom Plate Type Plastic
Top Plate Hole/Stud Qty 1
Top Plate Dia. (A) 9.00
Top Plate C to C Dia. (B) N/A
Bottom Plate Hole/Stud Qty 1
Bottom Plate Dia. (C) 8.19
Bottom Plate C to C Dia. (D) N/A
Bottom Part # BS11561
Bumper No
Bracket AB9622P
Min. Height 3.90
Max. Dia. 11.40
