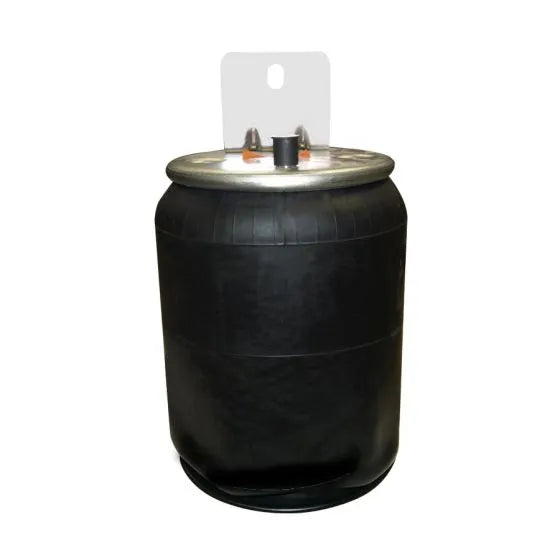

AB1DF23I-P1067 - Air Spring Rolling Lobe

Product Overview

Automann's premier air spring boasts the ability to maintain ride height. Engineered to meet OEM specification while minimizing vibration and load fluctuations. The Air Spring is guaranteed to ensure a smooth ride for driver and cargo alike. Enjoy a quiet and level ride experience with these long lasting Air Springs. Committed to Keeping Trucks Moving

Specific Features & Benefits

• Quality raw material and manufacturer expertise to guarantee performance
• Plastic Base allows for optimized weight and cost savings
• Features OEM dimensioning and up assembly mounting bracket for hassle-free installation
• Resistant to oil; lubricants; and averse weather conditions
• Manufactured to be environmentally friendly and longer lasting

• Applications	International
  Type	Rolling Lobe
  Brand	Continental/ econoride/ contitech/ automannhoenix
  Automann Bellows#	1DF23I
  Firestone Bellows#	1T15XR-9
  Goodyear Bellows#	566-24-3-165
  Contitech Bellows#	9 10S-18
  Load (Lbs) @80 PSI	5900
  Load (Lbs) @100 PSI	7500
  Natural Freq. (CPM)	57
  Design Height (In)	14
  Bottom Plate Type	Plastic
  Top Plate Hole/Stud Qty	2
  Top Plate Dia. (A)	9.00
  Top Plate C to C Dia. (B)	5.87
  Bottom Plate Hole/Stud Qty	1
  Bottom Plate C to C Dia. (D)	2.25"
  Bottom Part #	BS16239
  Bumper	No
  Bracket	AB9875P
  Min. Height	6.90
  Max. Height	24.29
  Max. Dia.	12.60



• Goodyear# - 1R12-432
