Automann

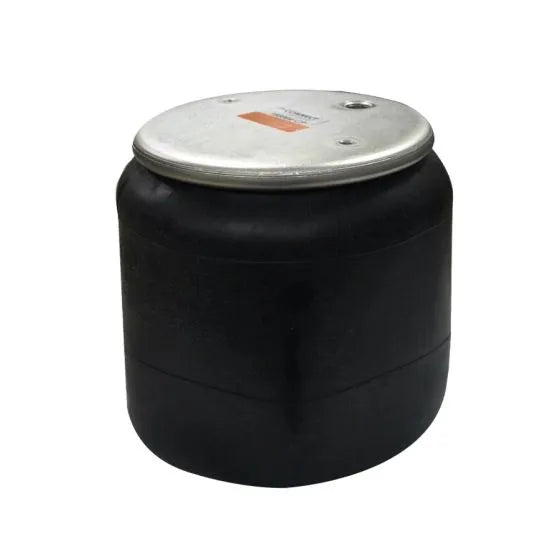

566.ER8864 - Econoride Air Spring Rolling Lobe
566.ER8864 - Econoride Air Spring Rolling Lobe
Regular price
$94.50
Regular price
Sale price
$94.50
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
| Applications | Kenworth Peterbilt |
| Type | Rolling Lobe |
| Brand | Continental/ econoride/ contitech/ automann |
| Automann Bellows# | 1DK23L |
| Firestone Bellows# | 1T15M-9 |
| Contitech Bellows# | 9 10-19 |
| Triangle Bellows# | 6364 |
| Load (Lbs) @80 PSI | 5600 |
| Load (Lbs) @100 PSI | 7100 |
| Natural Freq. (CPM) | 65 |
| Design Height (In) | 16 |
| Bottom Plate Type | Plastic |
| Top Plate Hole/Stud Qty | 3 |

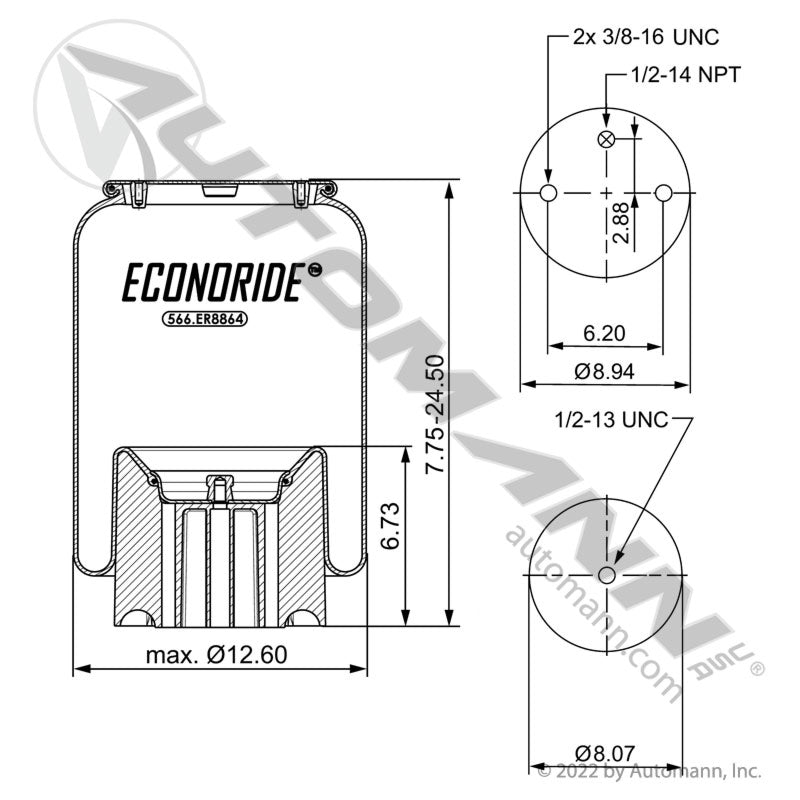

| Top Plate Dia. (A) | 9.00 |
| Top Plate C to C Dia. (B) | 6.20 |
| Bottom Plate Hole/Stud Qty | 1 |
| Bottom Plate Dia. (C) | 8.07 |
| Bottom Plate C to C Dia. (D) | N/A |
| Bottom Part # | BS08765 |
| Bumper | No |
| Bracket | N/A |
| Min. Height | 7.8 |
| Max. Height | 25.2 |
| Max. Dia. | 12.6 |
Alternative # 1R12-1097
Firestone OEM Part Number: W01-358-8864
Firestone OEM Part Number: W013588864
Firestone OEM Part Number: 8864
